Intelligent Dual-Mode Wired Gateway for ZigBee 3.0 Smart Home Control Systems

This wired gateway provides a centralised control solution for building and managing a smart home ecosystem. Acting as a ZigBee 3.0 hub, it enables the connection and coordination of multiple compatible sub-devices, allowing users to create automated routines and monitor their home from a single interface. The gateway connects via a standard 5V 1A USB power supply, making installation straightforward without requiring complex wiring or professional assistance. With support for both the Tuyasmart and Smart Life applications, it offers flexible control options for Android and iOS smartphone users seeking to implement smart lighting, security sensors, or environmental controls within their living space.

Technical Specifications and Hardware

The gateway’s operation is defined by clear technical parameters that determine its placement and performance within a home environment. These specifications ensure reliable functionality across varying conditions while providing the necessary connectivity for a responsive smart home network.

Power and Connectivity

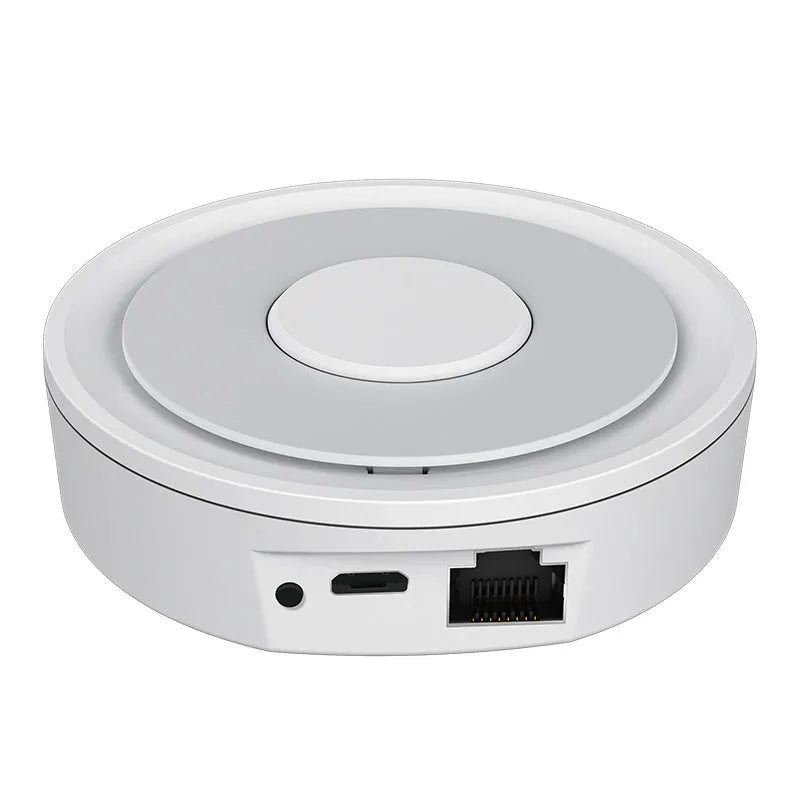

The gateway requires a 5V 1A USB power supply, a common standard that allows it to be powered from most USB wall adapters, power banks, or computer ports. This wired power connection provides continuous operation without battery concerns. For wireless communication, it uses the ZigBee 3.0 protocol based on the IEEE 802.15.4 standard, creating a secure mesh network with sub-devices. The effective wireless range extends to 55 metres in open air, though actual indoor range may vary depending on building materials and obstructions.

Physical Design and Environmental Tolerance

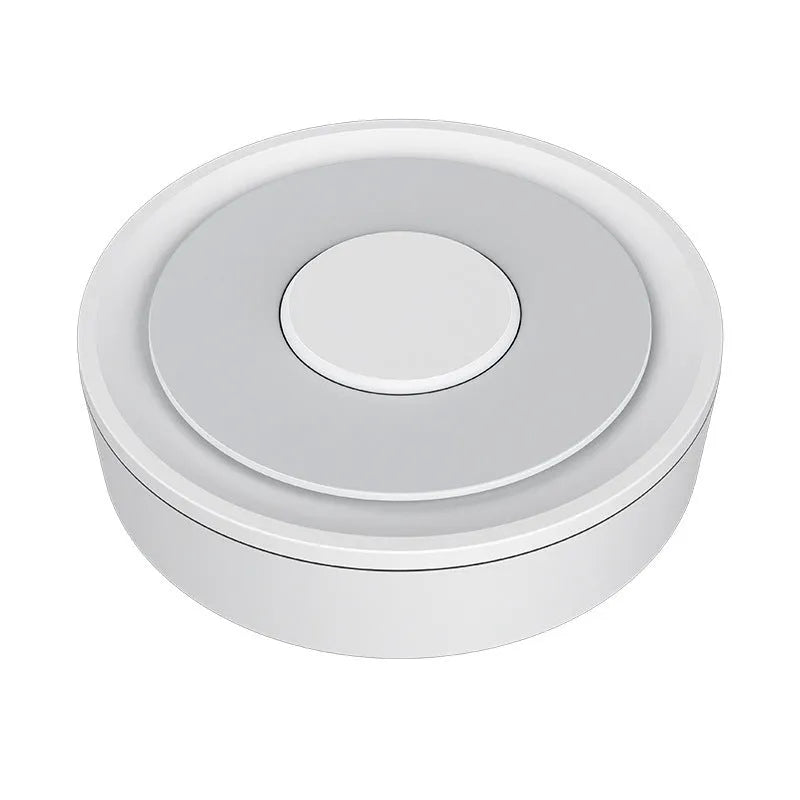

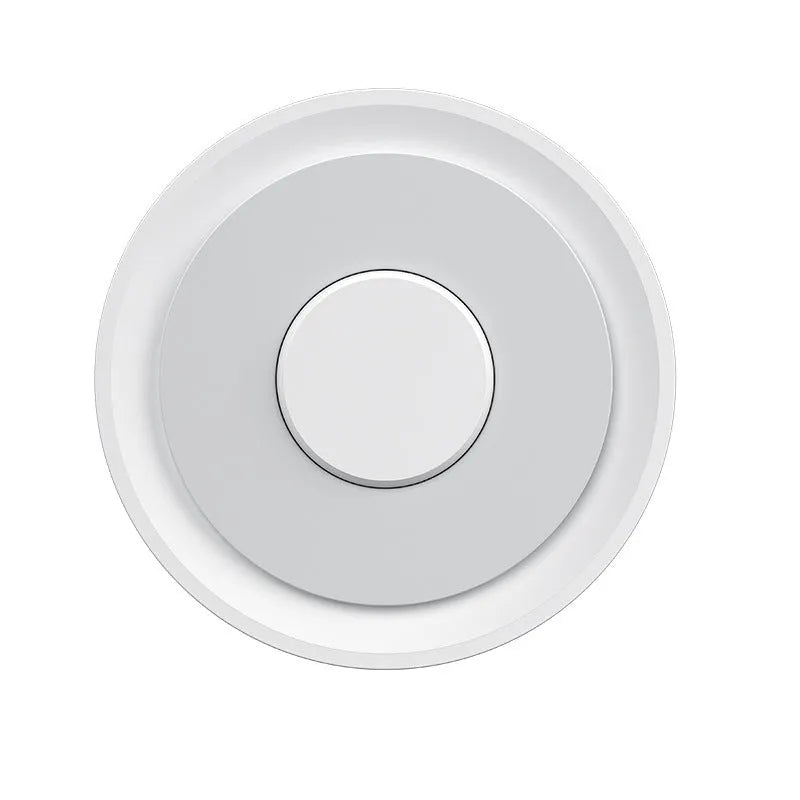

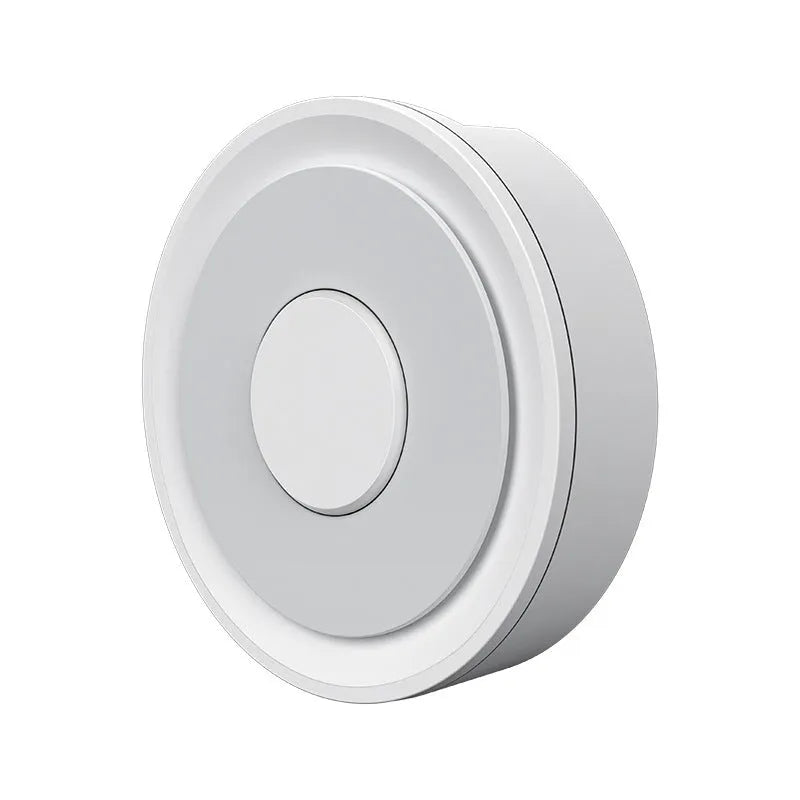

Housed in a white plastic enclosure, the gateway measures 78mm in width, 78mm in depth, and 25mm in height, resulting in a compact form that can be discreetly placed on a shelf, desk, or cabinet. It is engineered to operate in ambient temperatures from -10°C to 55°C and humidity levels between 10% and 90% RH, covering typical UK indoor climate conditions. These same ranges apply for storage, ensuring the device remains stable when not in use.

Software and System Integration

Control and configuration of the gateway are managed through companion mobile applications, with ongoing support through firmware updates. This software layer transforms the hardware into a personalised home automation tool.

App Control and Device Support

Users can download the free Tuyasmart or Smart Life app from their device’s app store. Both applications support Android and iOS platforms, providing a unified interface for adding ZigBee sub-devices, creating automation scenes, and scheduling routines. The gateway acts as the central coordinator, allowing multiple devices like smart plugs, sensors, and lights to work together within the same network without requiring individual internet connections.

Maintenance and Updates

The gateway supports over-the-air firmware upgrades, meaning updates can be delivered remotely without physical intervention. This capability helps maintain security protocols, add new features, and improve compatibility with emerging ZigBee devices over time, extending the useful lifespan of the installation.

Practical Application and Placement

Effective use of the gateway depends on strategic placement within the home and understanding its role in a broader smart home setup. Considering its specifications helps optimise coverage and reliability.

Home Network Coverage

With a 55-metre stated range, the gateway should be positioned centrally relative to the intended sub-devices. In multi-storey homes, placing it on an intermediate floor may improve vertical coverage. The wireless signal can penetrate walls and ceilings, but dense materials like brick or concrete may reduce effective distance, potentially requiring additional ZigBee routers or repeaters for larger properties.

Integration with Existing Systems

As a dedicated ZigBee controller, this gateway works independently of Wi-Fi bandwidth for device-to-device communication, reducing congestion on your main wireless network. It provides a local control option that can function even during temporary internet outages for basic automations. For users expanding an existing smart home, it can serve as a secondary hub for ZigBee devices or as a primary controller for those new to home automation.
