1.3 Inch IPS LCD Display Module: A 240x240 Colour Screen for Electronics Projects

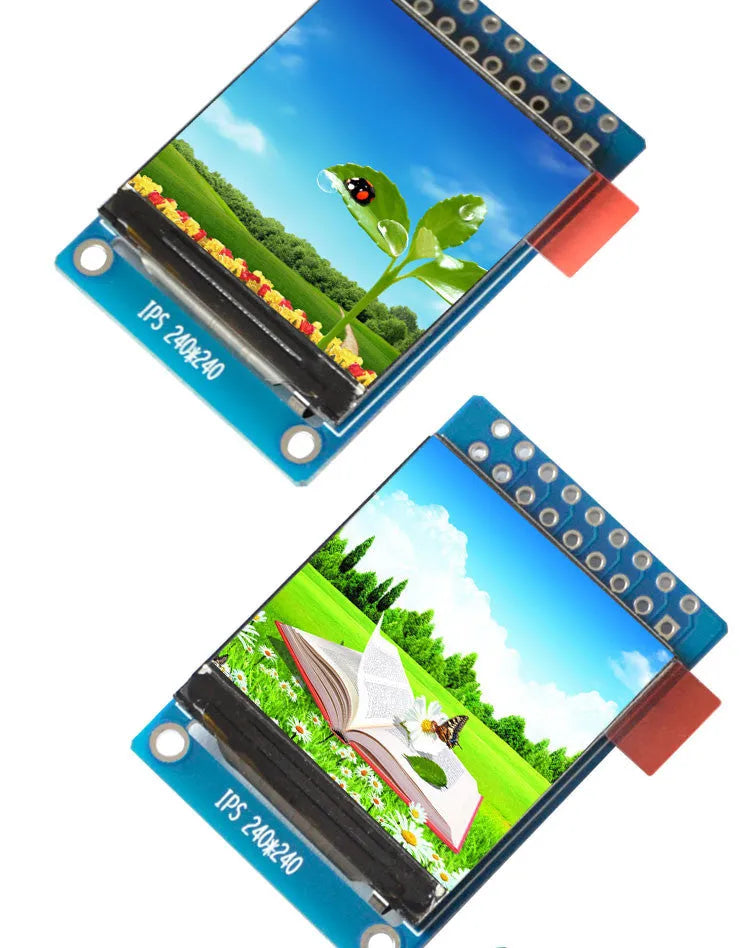

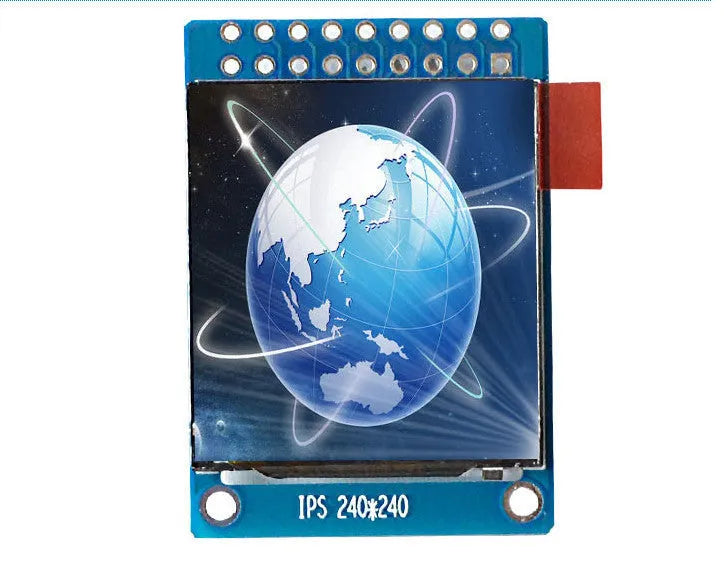

This compact 1.3-inch display module is engineered for developers and electronics enthusiasts needing a clear, colour visual output for their projects. Utilising IPS (In-Plane Switching) technology, it offers superior colour reproduction and wider viewing angles compared to conventional TFT screens, making it suitable for applications where readability from different positions is important. With a square 240x240 pixel resolution, it provides a crisp canvas for custom user interfaces, data visualisation, or simple graphics. Its compatibility with popular microcontrollers via standard interfaces makes it a practical choice for integrating a professional-looking display into prototypes, handheld devices, or instrumentation.

Features and Construction

This module combines specific hardware components to deliver a reliable display solution for embedded systems.

Material and Build

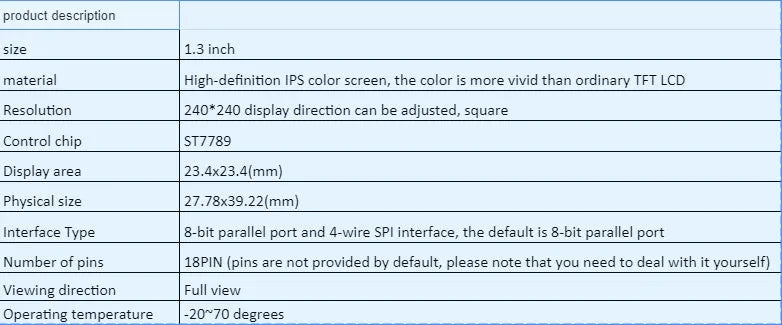

The core of this module is its high-definition IPS colour screen. IPS technology is noted for its ability to maintain colour consistency and clarity across a wide viewing arc, which is a functional advantage over basic TFT displays where colours can shift when viewed off-axis. The screen is paired with an ST7789 display driver chip, a common controller known for its efficiency in driving small to medium-sized LCDs. The module's construction is focused on providing the essential display functions without integrated touch or other peripheral features, keeping it straightforward for circuit integration.

Size and Practical Fit

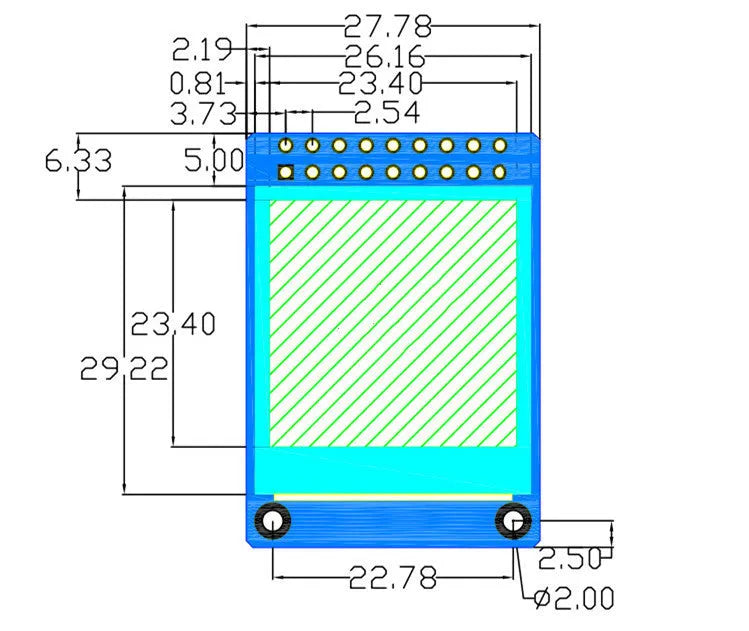

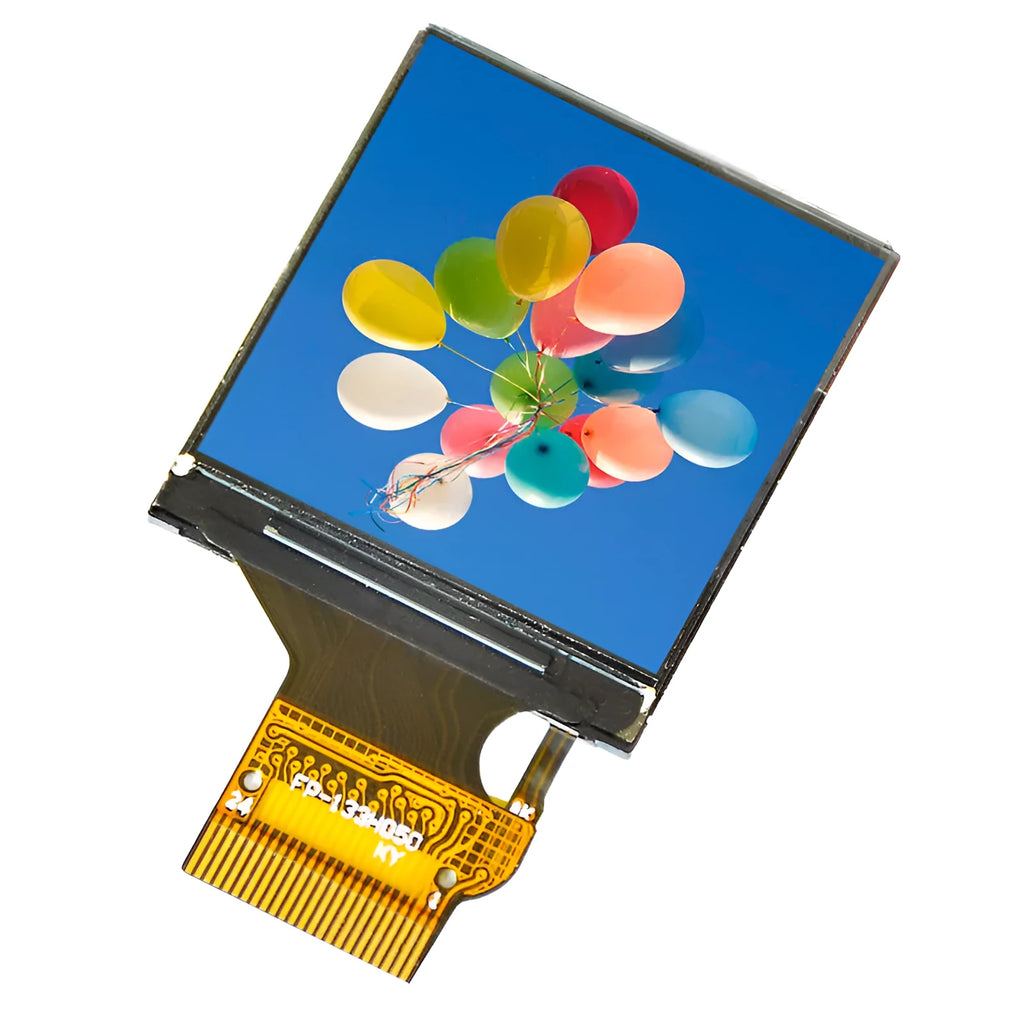

The display’s compact form factor is defined by two key measurements. The active area where pixels are visible is a square of 23.4 mm by 23.4 mm. The entire module, including the driver circuitry and connector, measures 27.78 mm in width by 39.22 mm in length. These dimensions allow it to fit into space-constrained designs, such as custom handheld consoles, wearable tech, or compact control panels. The 18-pin flat flex cable (FPC) connector provides the electrical interface, though users must procure and solder their own header pins, offering flexibility in final mounting height and orientation.

Uses and Placement

With its specific technical profile, this display finds application in both hobbyist and professional prototyping environments.

Event or Professional Use

In professional prototyping or product development, this display can serve as a cost-effective human-machine interface (HMI) component. Its dual-interface support (8-bit parallel and 4-wire SPI) allows engineers to select the mode that best conserves microcontroller I/O pins or optimises data transfer speed for their specific application. It could be used in portable diagnostic equipment, industrial sensor readouts, or as a status display on custom-built machinery, where its -20°C to 70°C operating temperature range accommodates various indoor environments.

Everyday Home Use

For the DIY community and makers, this screen is an ideal component for personal projects. It is commonly used in building retro gaming consoles like Game Boy Zero clones, custom smart home controllers, or weather stations. The square format and full-colour capability make it well-suited for emulating classic game visuals or displaying icons and text in a balanced layout. The requirement to solder header pins is a standard step in hobby electronics, allowing the user to tailor the connection for a breadboard, perfboard, or direct PCB mounting.

Benefits and Buying Value

Choosing this display module offers several practical advantages for project builders.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the display requires no maintenance. Its durability is linked to careful handling during soldering and operation within its specified temperature and voltage limits. The module can be reused across multiple project iterations or salvaged from one prototype to power the next, representing a long-term component for a workshop's inventory. The standard interfaces ensure it remains compatible with a wide range of popular development boards like Arduino, Raspberry Pi Pico, or STM32 platforms for years to come.

Why Choose This Product

This module provides a focused solution: a quality IPS colour display in a specific, small size. The value lies in its technical specification—the IPS panel for better viewing, the choice of industry-standard interfaces, and the clearly defined dimensions—which allows buyers to confidently integrate it into their designs. It avoids unnecessary bundled extras, keeping the cost focused on the core display functionality needed for technical projects. For anyone requiring a 1.3-inch colour display, this module presents a documented, adaptable option based on proven components.
