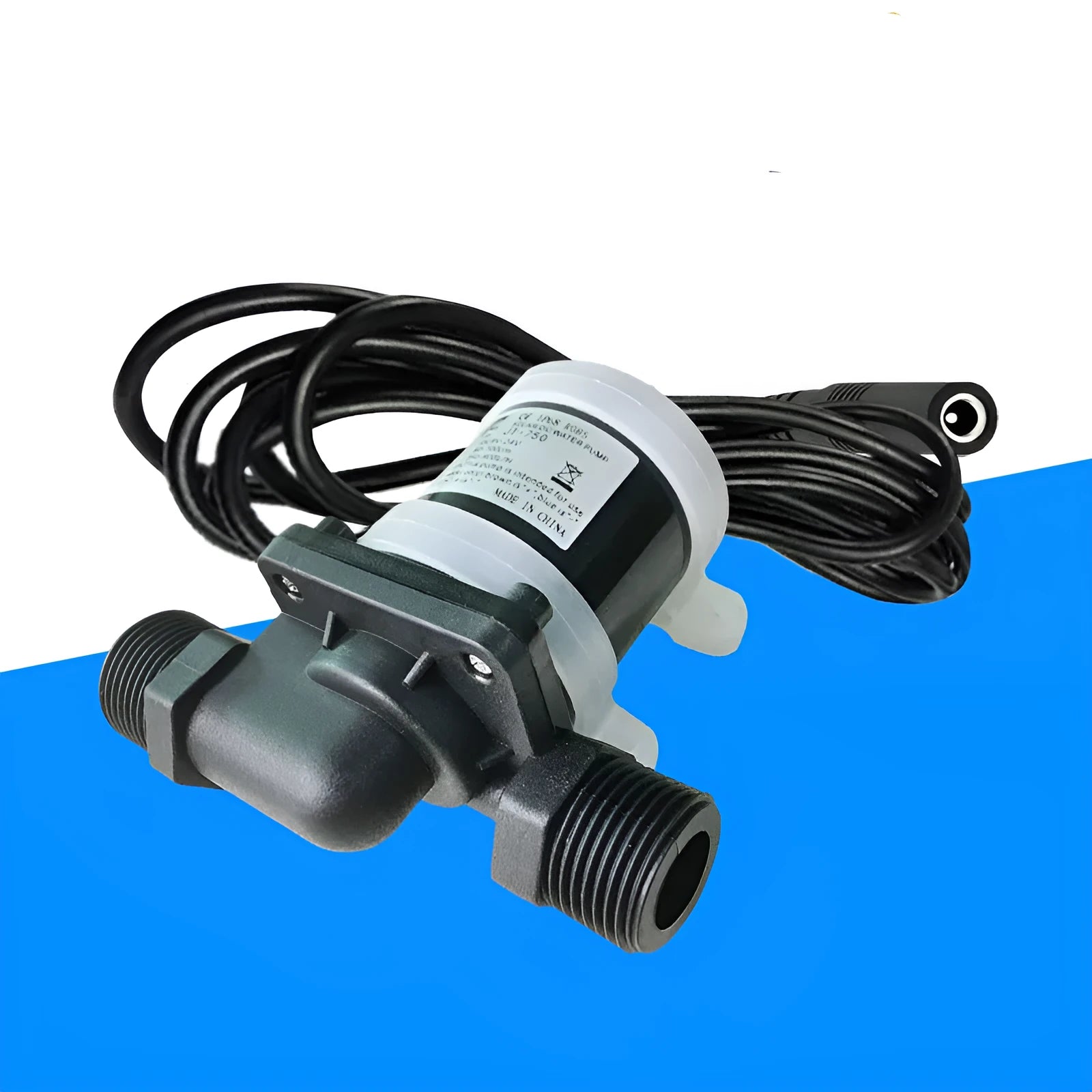

Jiatong JT-750 DC Threaded Water Pump: A Compact Booster for Solar Heating and Underfloor Systems

The Jiatong JT-750 series represents a focused solution for enhancing water circulation in domestic thermal systems. This DC-powered electric pump is specifically engineered as a process pump for clean water, making it an ideal component for solar water heater loops, underfloor heating systems, and other closed-circuit applications where a reliable flow is required. Its key specifications, including a flow rate of 1.2 m3/h and a head capability of up to 7 metres, provide concrete performance parameters for system designers and installers. The availability in different threaded configurations (4-point and 5-point) and voltage options (12V and 24V DC) offers flexibility to match existing pipework and power supplies, facilitating a practical upgrade or replacement within a variety of setups.

Features and Construction

The JT-750 pump's design prioritises functionality and integration within clean water systems. Its construction and measurable performance metrics define its suitability for specific domestic heating and hot water applications.

Material and Build

Constructed primarily from engineering plastic, the pump achieves a lightweight build of 0.18 kg while providing a material compatibility suited for clean water conveyance. The pump operates on the jet pump principle, featuring a horizontal shaft and a semi-open impeller design. This configuration, combined with its stated non-blocking performance, is geared towards maintaining consistent flow without clogging in systems free of debris. The single-stage, electric drive mechanism is contained within this compact plastic housing, resulting in a unit designed for reliable operation in its designated role.

Size and Practical Fit

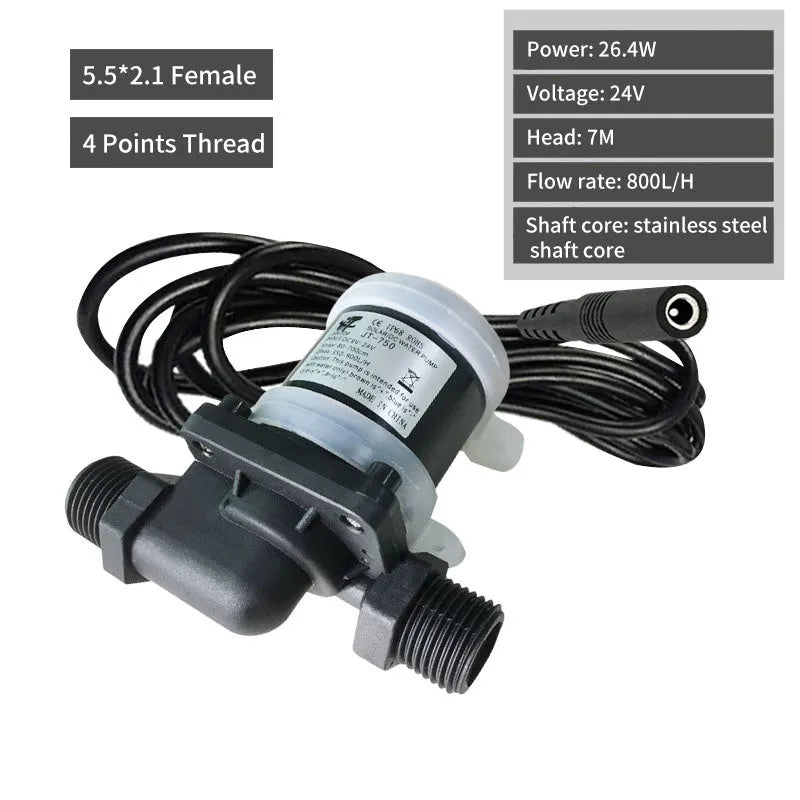

The pump's physical integration is defined by its connection points and compact form. Both the suction and outlet ports have calibres of 20/25 mm, accommodating standard small-bore piping. The primary model differentiators are the threaded connections, available in either 4-point or 5-point variants (as indicated by the B4/B5/D4/D5 model codes). This allows the installer to select the pump that matches their existing threaded fittings. The unit's light weight and horizontal shaft orientation simplify mounting and placement within equipment cabinets or adjacent to the thermal store, making it a space-efficient component for system pressure management.

Uses and Placement

This pump's application is clearly defined by its performance data and construction, pointing towards specific uses in residential thermal and water systems.

Event or Professional Use

For installers and system integrators, the JT-750 provides a specifiable component for retrofitting or new builds. Its clear parameters—1.2 m3/h flow, 3-7m head, 12-24V DC operation—allow for precise calculation within system design. The choice between 12V and 24V models enables integration with different types of solar PV setups or battery-backed low-voltage circuits, offering installation flexibility. The availability of different thread sizes means it can be specified to directly replace a failed unit or to match the planned pipework, reducing adaptor requirements and simplifying the parts list for professional projects.

Everyday Home Use

For the homeowner, this pump functions as a behind-the-scenes component that improves the performance of existing thermal systems. Its role is to maintain adequate circulation in a solar thermal panel loop, ensuring harvested heat is effectively transferred to the hot water cylinder. Similarly, in an underfloor heating manifold, it can help overcome pressure drops in longer pipe runs, promoting even heat distribution across different zones. The non-blocking design and clean water specification mean it is intended for use within maintained, sealed systems, contributing to consistent hot water availability and heating performance without requiring routine user intervention.

Benefits and Buying Value

The value of the JT-750 pump lies in its specific function, measurable performance, and the practical advantages it brings to system operation.

Reuse and Low Maintenance

As a component built for a specific circulating function within clean water systems, its value is tied to reliable operation over time. The engineering plastic construction is chosen for compatibility with water and for corrosion resistance within its operating environment. The stated non-blocking performance suggests a design intent to minimise maintenance issues related to debris. By providing the necessary flow and head to a system, it helps maintain overall efficiency, which can contribute to the consistent output and longevity of the broader solar thermal or heating installation it serves.

Why Choose This Product

Selecting the Jiatong JT-750 is a decision based on matching technical specifications to a clear system need. Its defined flow and head ratings provide a known performance level for system enhancement. The availability of multiple thread and voltage variants directly addresses the common variables in existing installations, making it a versatile replacement or upgrade part. For those integrating a pump with a solar DC circuit, its 12-24V operating range is a directly relevant feature. Ultimately, it offers a concrete, specification-driven solution for improving water circulation pressure, with its lightweight and compact design being practical benefits for installation and space management.
